Starting from:
$9,111
Specifications
- Manufacturer: John Deere

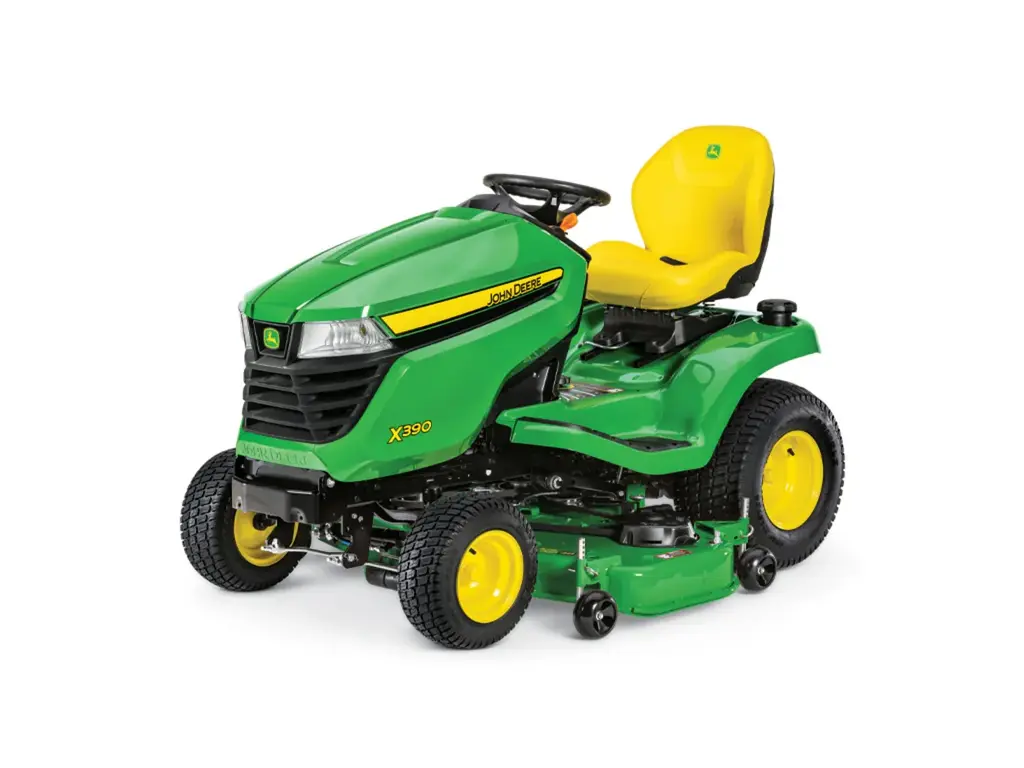

- Model: X390 48-in. Deck
- Year: 2025
- Type: Lawn tractor
- Engine power: 23 hp
- Oil change: No-tools oil drain with replaceable filter
- Engine manufacturer/model: FR691V
- Transaxle type: K58 hydrostatic integrated with transaxle
- Transaxle control: Twin Touch™ pedals
- Rear tires: 22x11-10
- Lift system type: Hydraulic
- Cutting width: Accel Deep™ mower deck, 48 in.
- U.S. warranty: 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
- Power: 23 hp
- Displacement: 44.3 cu in.
- Manufacturer/model: FR691V
- Type: Overhead valve, full-pressure lube, oil filter
- Cylinders: V-twin, cast-iron liners
- Governor: Mechanical
- Choke/speed control: Separate levers, automatic choke return
- Cooling method: Air
- Air cleaner: Dry, replaceable
- Oil change: No-tools oil drain with replaceable filter
- Type: Gasoline
- Fuel delivery: Pulse pump, carburetor
- Fuel gauge: Gauge on dash
- Fuel tank location: Rear
- Fuel fill opening: On left fender, 3 in.
- Fuel tank capacity: 3.3 U.S. gal.
- Battery: 12 V
- Charging system: Flywheel alternator, regulated, 12 amp
- Engine starter: Bendix
- Hour meter: Yes
- Headlights: Two standard, incandescent, 27 W
- Taillights or reflector: No
- Backup lights: No
- Rear work lights: No
- 12-V outlet: Optional
- Type: K58 hydrostatic integrated with transaxle
- Control: Twin Touch™ pedals
- Cruise control: Yes, button on dash
- Oil cooler: Fins and fan on transaxle
- Oil filter: Internal, not replaceable
- Differential lock: No
- Forward speed: 0-6.2 mph
- Reverse speed: 0-3.5 mph
- Brakes: Internal wet disc
- Frame: Welded heavy-duty
- Primer/paint: E-coat/powder
- Weight bracket: Standard rear, optional front
- Receiver hitch: No
- Front axle: Cast iron front axle, front wheel ball bearings
- Spindle bushings: Metal, replaceable
- Front tires: 15x6.5-8
- Rear tires: 22x11-10
- Hood material: Fully enclosed, molded-in color material reduces sound, will not rust or dent
- Fender deck material: Stamped steel
- Floor mats: Sure-grip rubber
- Storage: Yes, under seat and covered toolbox
- Service interval decal: Yes
- Fender handles/grips: No
- Cup holder: Yes
- Equipment mounting: Yes, heavy duty
- Maximum towing capacity: 600 lb
- Type: Power, hydraulic
- Four-wheel steer: Not available on this model
- Steering wheel: Large, 14 in.
- Tilt steering wheel: Standard, five position
- Turning radius: 22 in.
- Uncut circle radius: 24 in.
- Type: Cut-and-sewn high-back
- Seat back height: 18 in.
- Armrests: Optional
- Fore-aft adjustment: While seated, ball bearing slide rail, 15-position, 6.6 in.
- Seat suspension: Tilt, two coil springs, three-position no-tools adjustment for operator weight
- Type: Hydraulic
- Hydraulic outlets: No
- Mower cut height: 13 positions, 1-4 in.
- Cut height increments: 0.25 in.
- Preset cut height: Yes
- Type: Side discharge
- Cutting width: Accel Deep™ mower deck, 48 in.
- Construction: Forged steel deck shell
- Mower deck material: 10 gauge
- Mower wash port: Yes
- Mower drive system: Electric power take-off (PTO) clutch, in-line belt
- Mower wheels: Four
- Mower wheel adjustment: Seven-position, spring-loaded pin
- Mower level adjustment: Exact Adjust ports and onboard deck-leveling gauge
- Type: Roll under tractor
- Front draft arms: Attached with spring pins at two points
- Rear draft arms: Quick-pull pins
- Mower wheels rotate: Yes, 90 degrees for easy mower removal
- Drive system: Dual belt
- Meets ANSI standard: Yes
- Meets OPEI standard: Yes
- Backup protection: Reverse Implement Option (RIO)
- Safety video: Yes
- Notes: Hydraulic power lift for superior convenience and ease of use
- Warranty: 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
- Mowers: 48A (standard)
- Rear bagger: 7, 19 bu
- Powered material collection: Power Flow™ blower
- Mulching system: Yes, MulchControl™
- Front thatcher: 38, 46, 54 in.
- Front blade: 44 in.
- Snow blower: Two-stage, 44 in.
- Sprayer: Tow-behind, 15 U.S. gal.
- Spreader: Tow-behind, 125 lb
- Front bumper: Styled bumper option
- Brush guard: Yes
- Weather protection: Weather enclosure
- Sun canopy: Yes
- Bucket holder: Yes, double bucket
- Grass striping: Lawn striping kit
- Tractor shovel: 40 in.
- Tow-behind tools: 16
- Height: 49 in.
- Overall length: 72.3 in.
- Wheelbase: 49.4 in.
- Width with mower: 62.6 in.
- Width with mower (deflector raised for storage): 52.6 in.
- Width without mower: 39.4 in.
- Weight: Mower, no fuel: 678 lb
- Manufacturing location: Horicon, Wisconsin, USA
- Date collected: 3-Oct-22
