Specifications

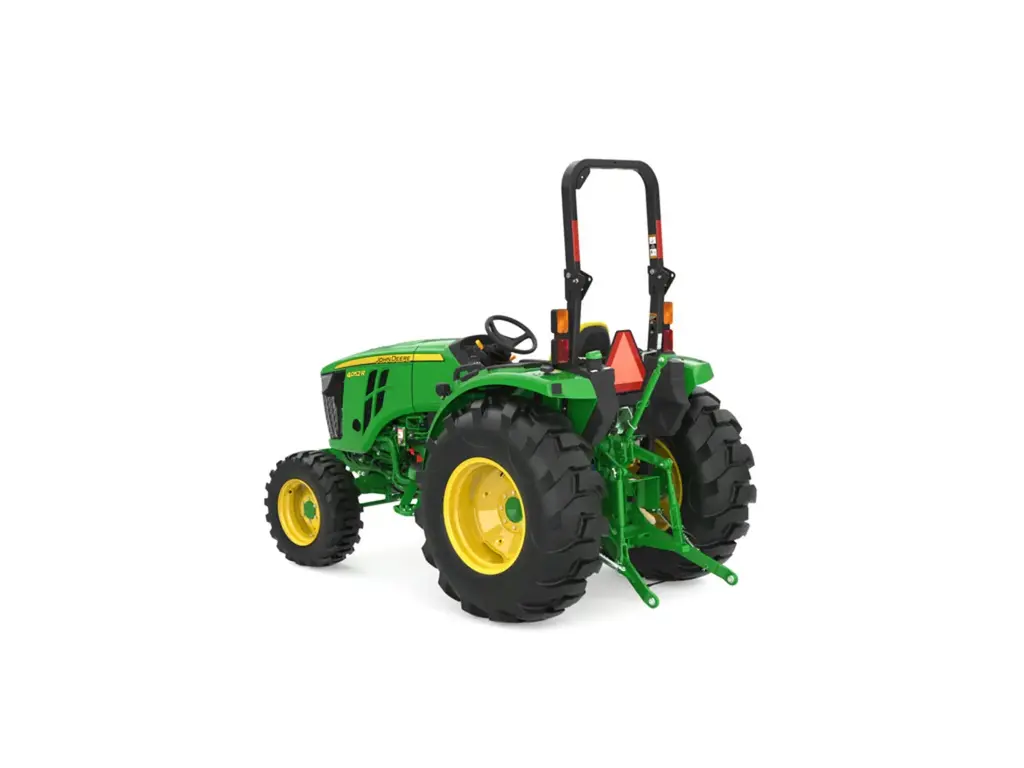

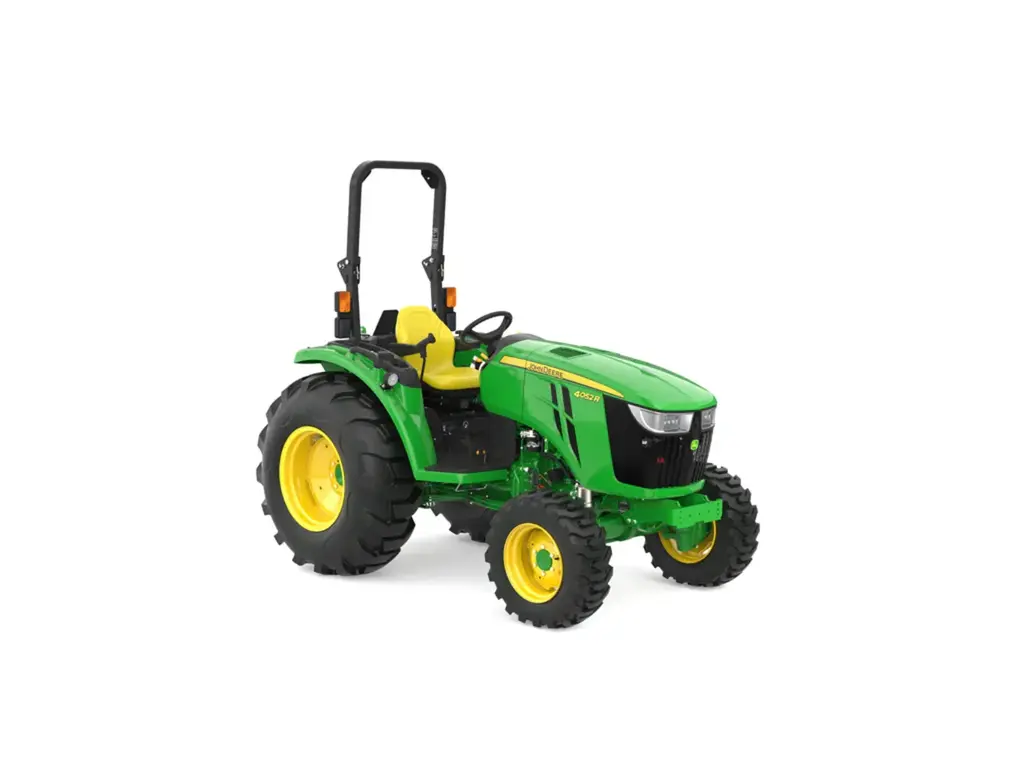

- Manufacturer: John Deere

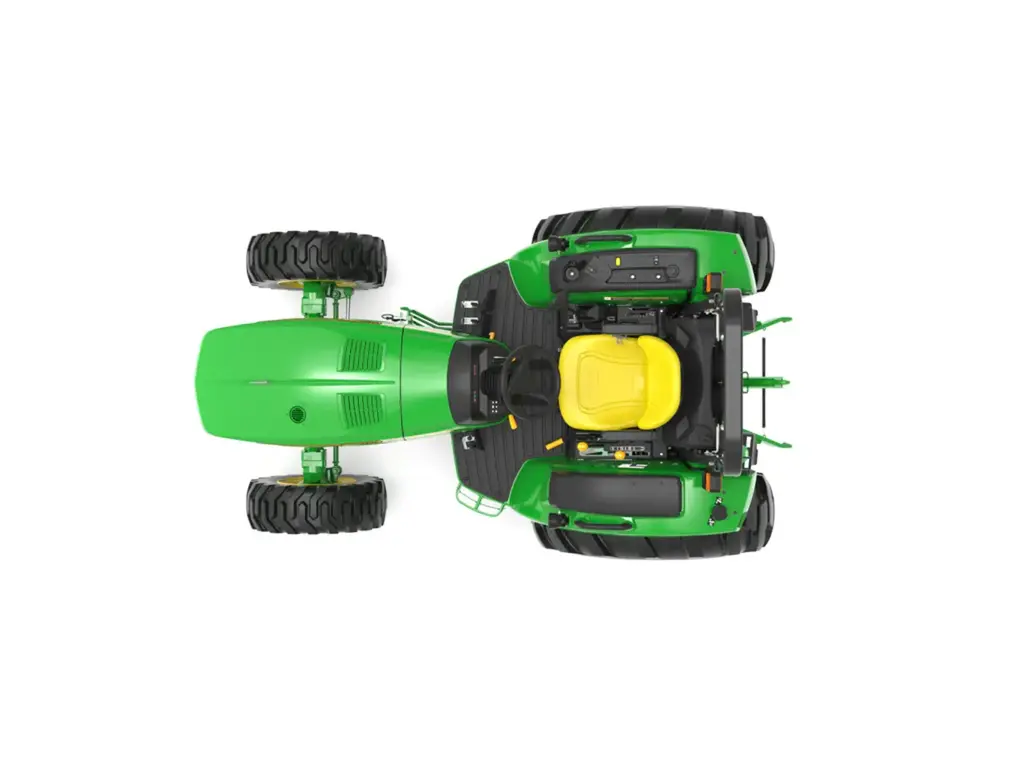

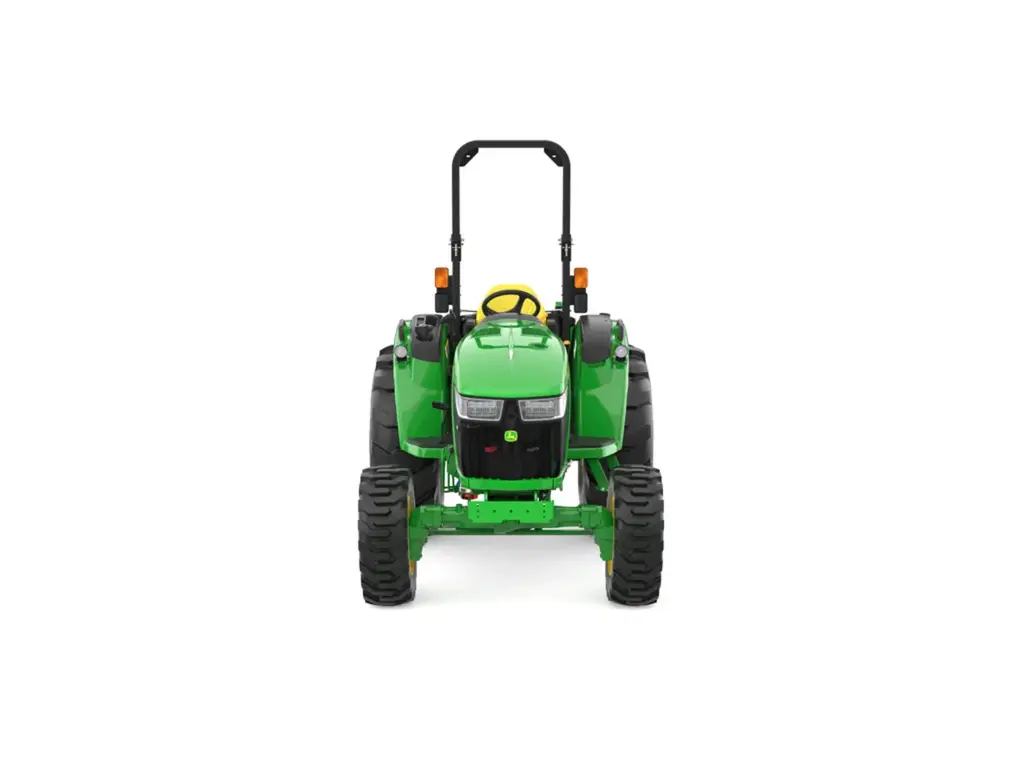

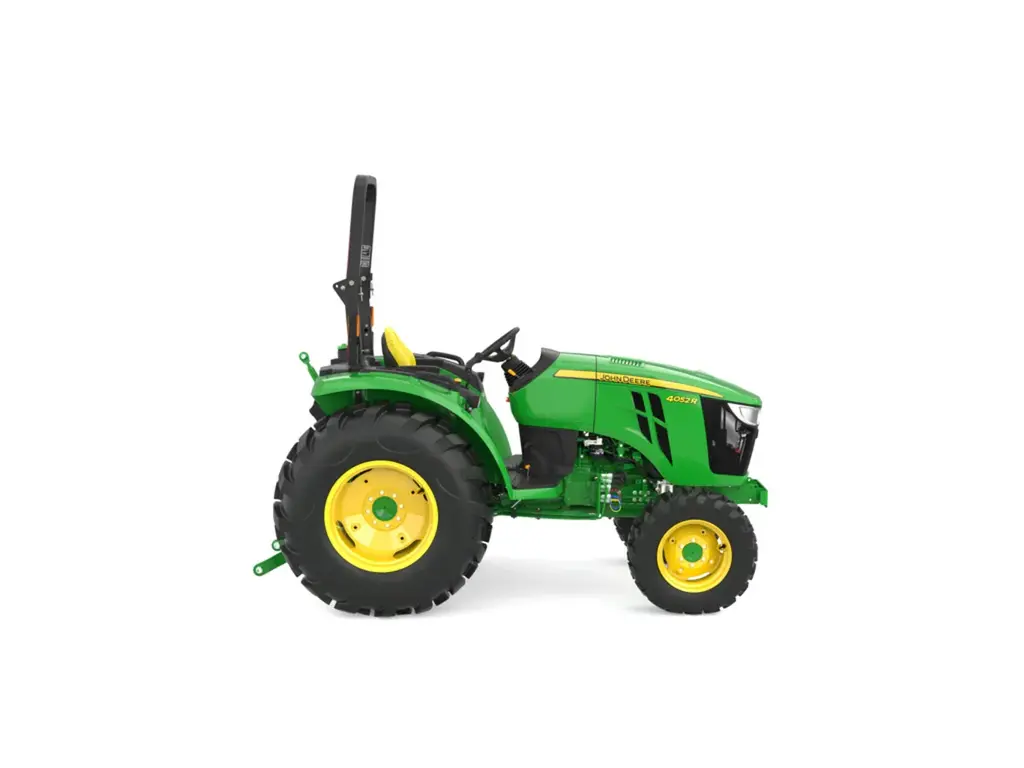

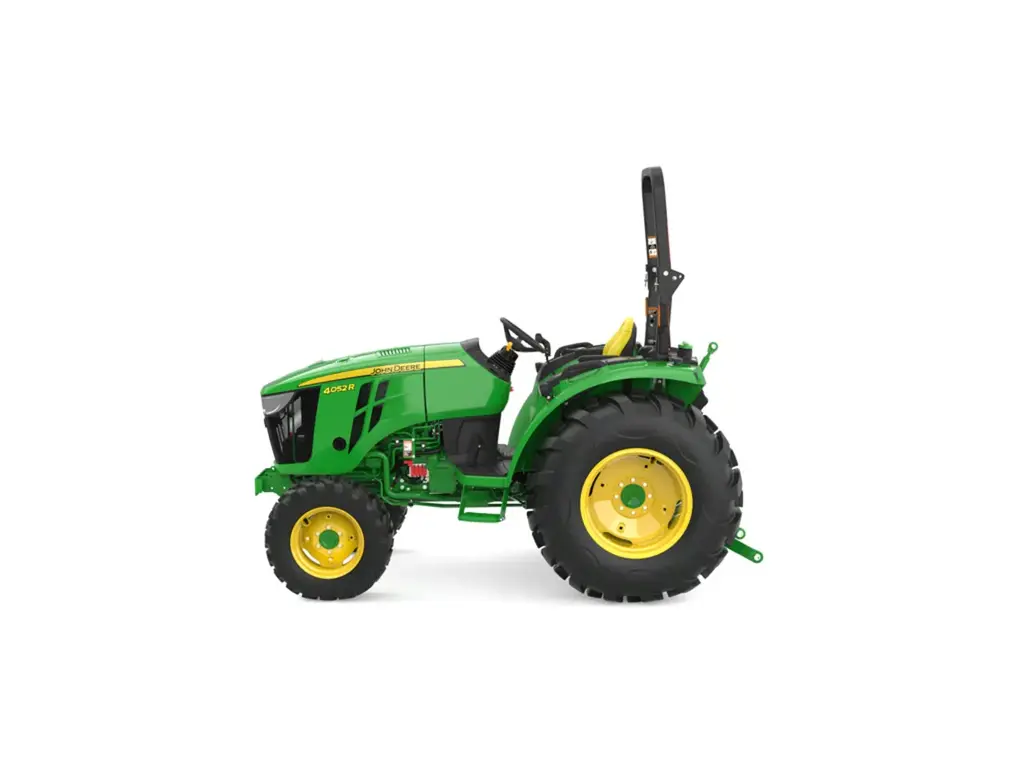

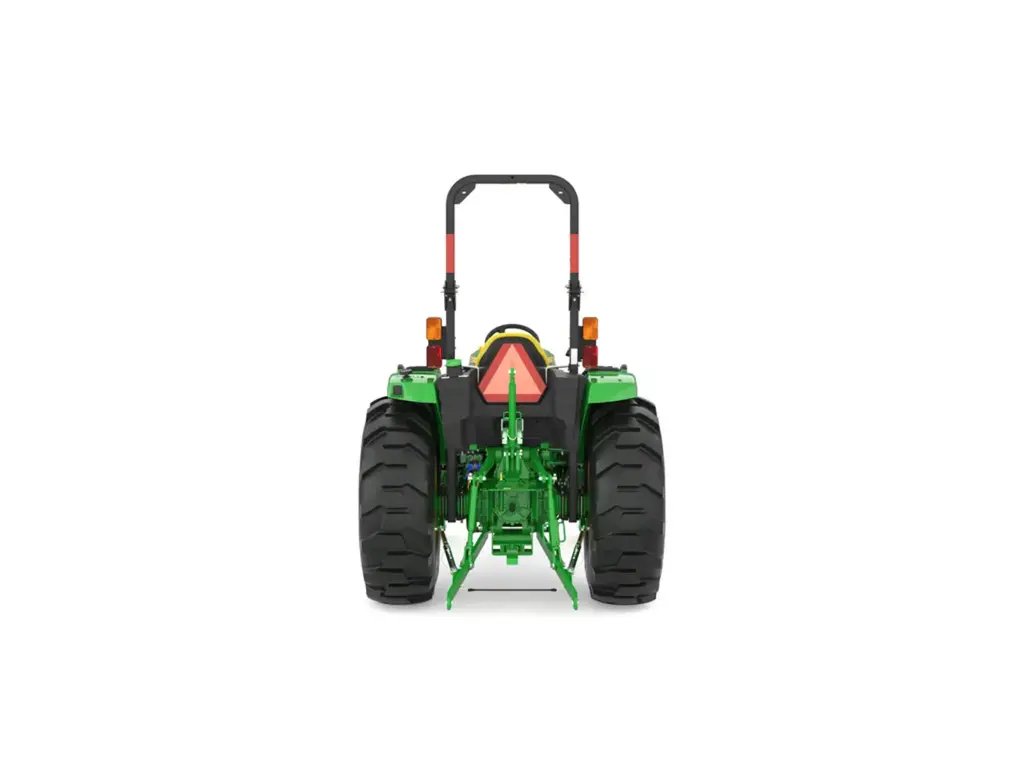

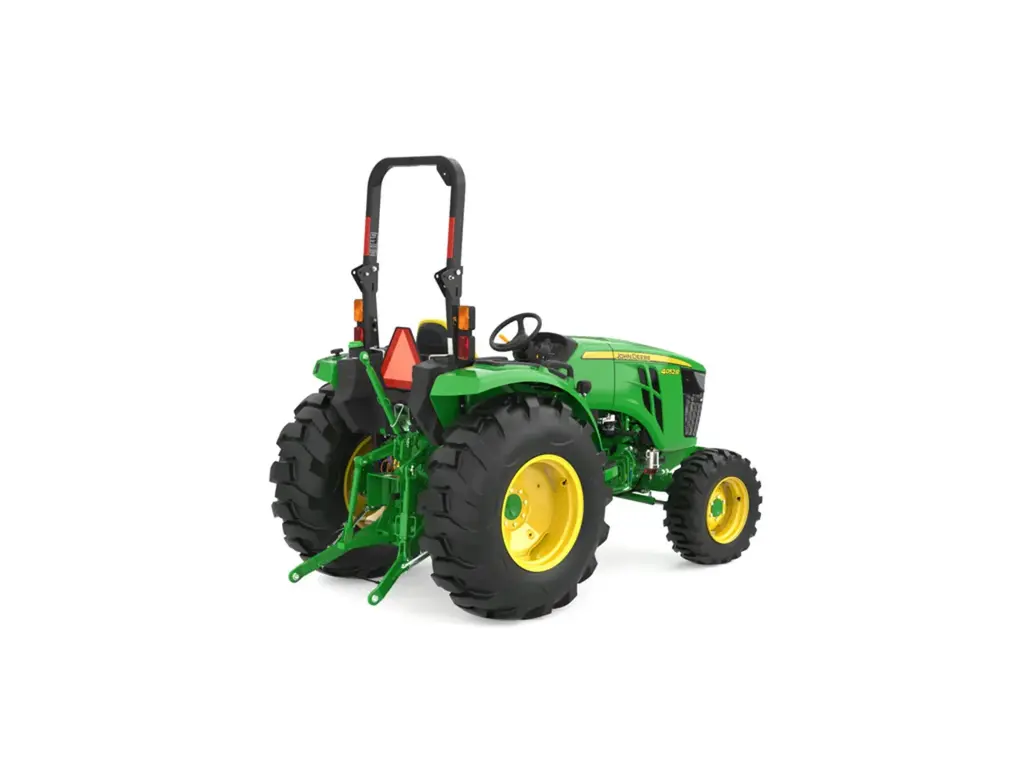

- Model: 4052R
- Year: 2025
- Type: Compact tractor
- Engine power (gross): SAE J1995 rated power: 37.9 kW
- Power take-off (PTO) power: PowrReverser™ transmission: 30.5 kW
- Steering hydraulics: 23.5 L/min
- Implement hydraulics: 42.3 L/min
- Hitch type: Category 1
- Lift capacity, 24-in. behind link arms: 1135 kg
- Standard transmission; forward/reverse: eHydro Transmission (eHST)
- Cruise control: Standard
- Approximate shipping weight (open-station; cab): Open operator station (OOS) - 1710 kg
- Wheelbase: 185.5 cm
- Family: EYDXL2.09TDA
- Manufacturer: Yanmar
- Engine model: 4TNV86CT-MJT
- Engine power (gross): SAE J1995 rated power: 37.9 kW
- Power take-off (PTO) power: PowrReverser transmission: 30.5 kW
- Rated engine speed: 2600 rpm
- Type: Diesel
- Injection pump type: High pressure common rail direct injection
- Aspiration: Turbocharged
- Emissions compliance: Final Tier 4
- Cylinders/displacement: 4 / 2.091 L
- Number of cylinders: Four
- Cylinder liners: Cast-in-block
- Bore and stroke: 86 x 90 mm
- Compression ratio: 19.1:1
- Lubrication: Pressurized
- Cooling system: Liquid
- Air cleaner: Dual element with electronic restriction indicator
- Engine torque at rated speed: 139 Nm
- Fuel tank capacity: Rollover protective structure (ROPS) - 56.9 L
- Battery size: 770 CCA
- Alternator (12-V): 75 amp
- Starter size: 2 kW
- Type: High pressure common rail direct injection
- Standard transmission; forward/reverse: eHydro transmission (eHST)
- Optional transmission; forward/reverse: 12/12 PowrReverser transmission (PRT)
- Left-hand reverser: PRT only
- Transmission gear ranges: PRT - 12F/12R eHydro - Infinitely-variable 3 range
- Final drive: Planetary
- Brakes: Multi-plate wet disc
- Steering: Hydrostatic power steering
- Clutch, wet/dry: Wet
- Clutch disk diameter wet clutch: 129 mm
- Axle capacity: Front
- Creeper: SpeedMatch standard
- Cruise control: Standard
- Differential lock: Yes
- Type: Open center
- Pump rated output: Steering
- Pump type: Single gear
- Draft control sensing: Position control
- Remote control valves available: Up to six rear remotes
- Type: Category 1
- Lift capacity, 24-in. behind link arms: 1135 kg
- Standard: Independent 540 rpm at 2600 rpm
- Optional: 540E rpm
- Control: Independent
- Clutch: Wet disc
- Crankcase with filter: 5.3 L
- Transmission and hydraulic system: 47.3 L
- Type: Planetary
- Differential lock: Yes
- Rollover protective structure: Type
- Platform - flat/straddle: Flat
- Gear shift location - console/floor: PRT - Left-hand side
- Compliance: OSHA, SAE, ASAE
- Visibility: 360 degree (angle)
- Air conditioning, temperature differential: 14.4 °C
- Doors: Two
- Noise rating: 78 dBA
- Seat equipment: Air suspension with swivel
- Wheelbase: 185.5 cm
- Front axle clearance: 35.1 cm
- Turning radius with brakes: 2.8 m
- Turning radius without brakes: 3.0 m
- Approximate shipping weight (open-station; cab): Open operator station (OOS) - 1710 kg
- Front: Farm - 8-16
- Rear: Farm - 13.6-28
- Front tread range: 148.1 cm
- Rear tread spacing: 137.2 cm
